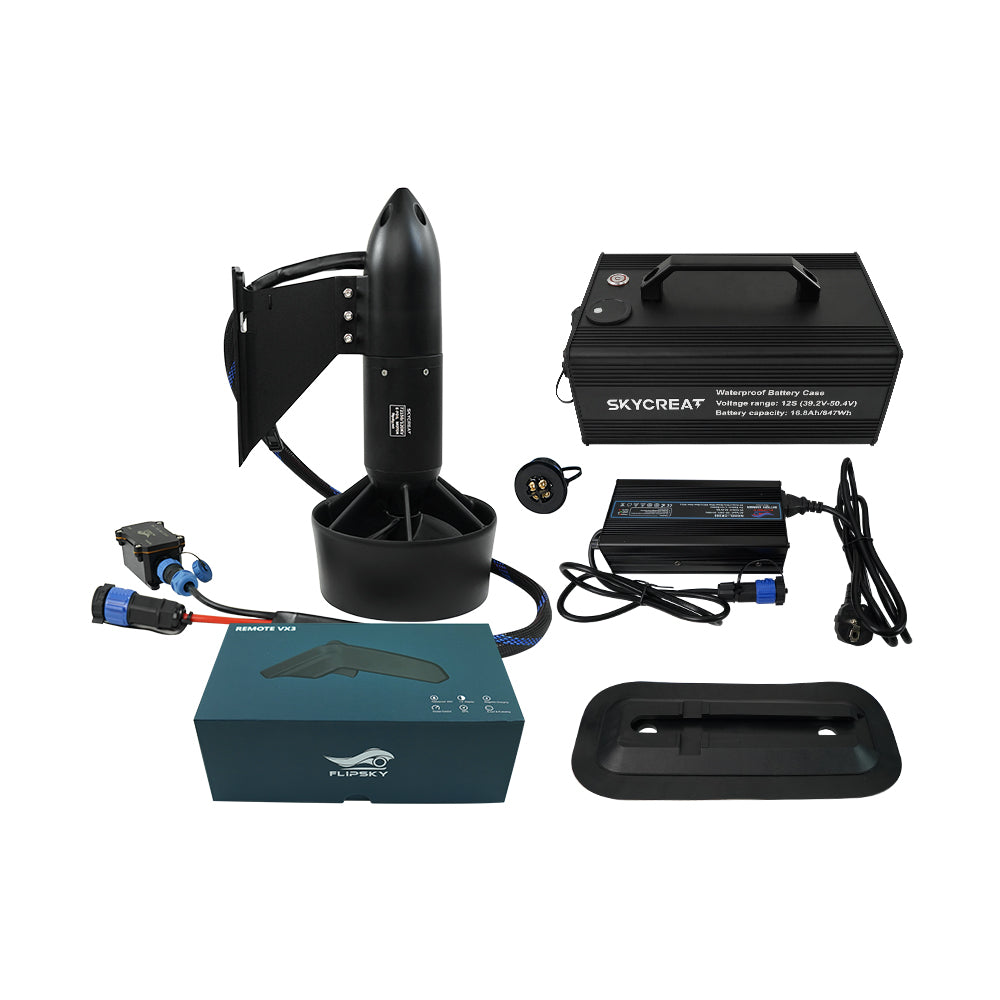

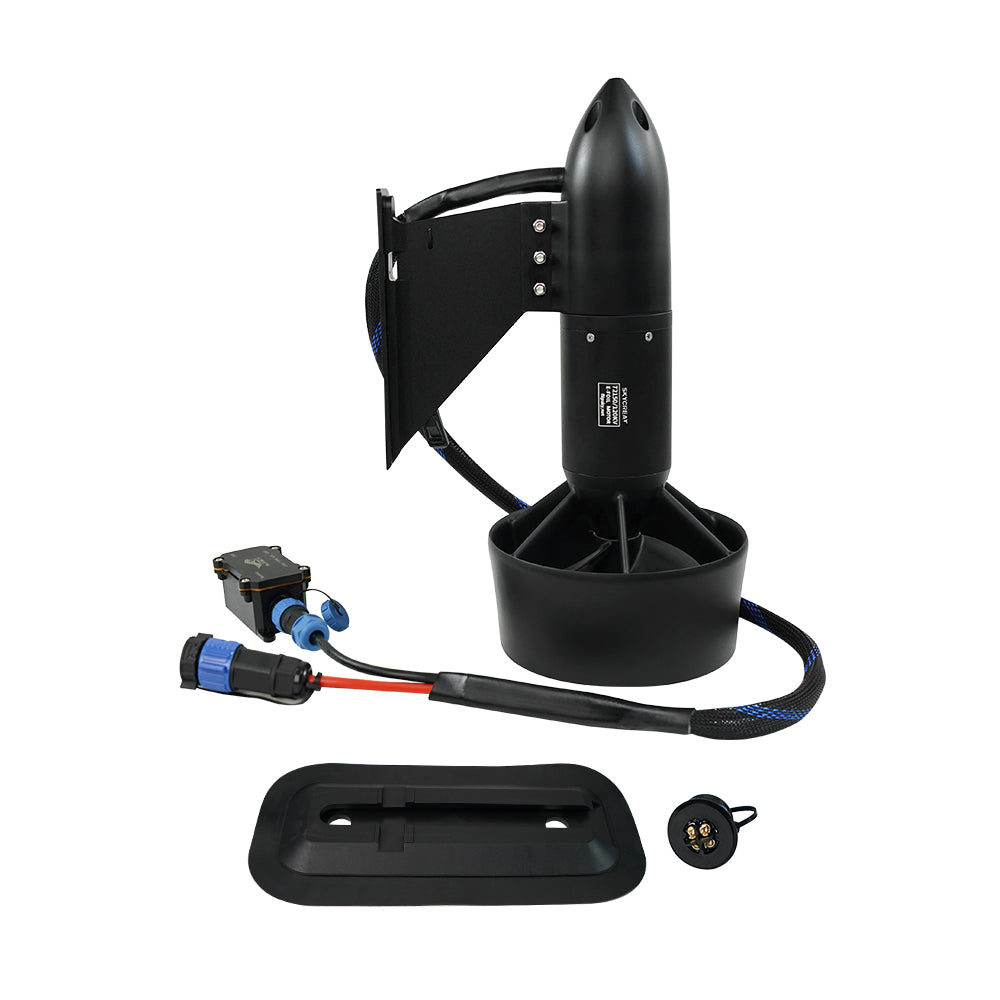

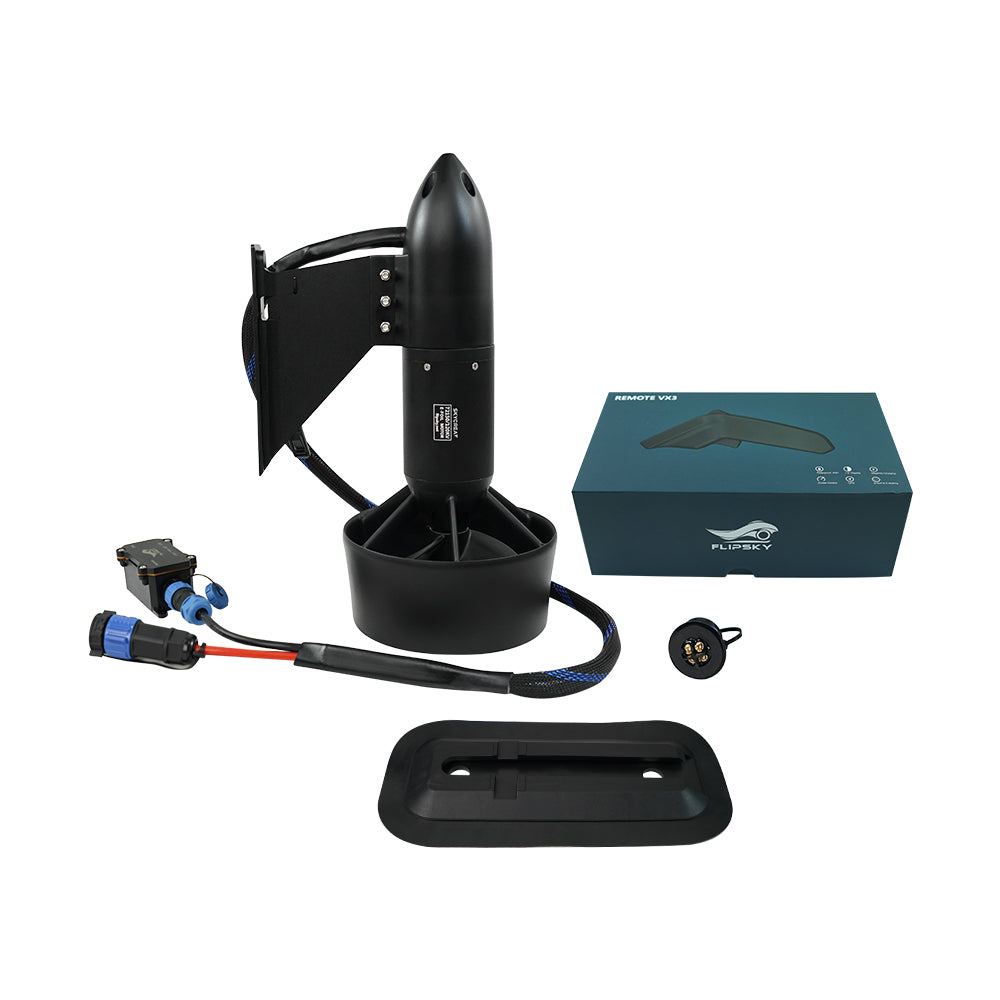

Skycreat 2200 Series 3000W Brushless Underwater Thruster – IP68 Waterproof for ROV, Jet Board, RC Boat & Outboard
Skycreat 2200 Series 3000W Brushless Underwater Thruster – IP68 Waterproof for ROV, Jet Board, RC Boat & Outboard
Regular price
$449.00 USD
Regular price
Sale price
$449.00 USD
Shipping calculated at checkout.
SKU:SK-PB2200T03
Quantity
Couldn't load pickup availability
72150 Motor Spec:
- Voltage range: 6-12S (25.2-50.4V)
- Continuous power: 2100W; Max power: 3000W
- Peak current: 100A; Continuous current: 70A
- Motor KV: 120KV
- Motor Blade: 3-blade propeller (140mm)
- Waterproof rate: IP68
- Lead wires extension: 10AWGx1200mm
- Max thrust: 30KG
Battery box parameters:
- Battery outer box size: 371*269*186mm
- Waterproof grade: IP67
- Battery box material: ABS
- Voltage:50.4V
- Cell specifications: Molicel P42A 27100
- Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
- Environment: (-20 degrees Celsius + 50 degrees Celsius)
- Charger: 50.4V 6A
- Charging time: about 2.6 hours
- Battery life: 90-120 minutes,Recommended cruising power: 500W.
ESC integrated Spec:
Remote control:
- remote control:VX3
- Control mode :UART
- Remote control distance: No interference, 25 meters in a straight line
- Waterproof grade:IP68
- There are 3 adjustable gears (L/M/H)
- Functions: Cruise control, GPS speed display, infinite throttle
| Motor & ESC | |
|---|---|

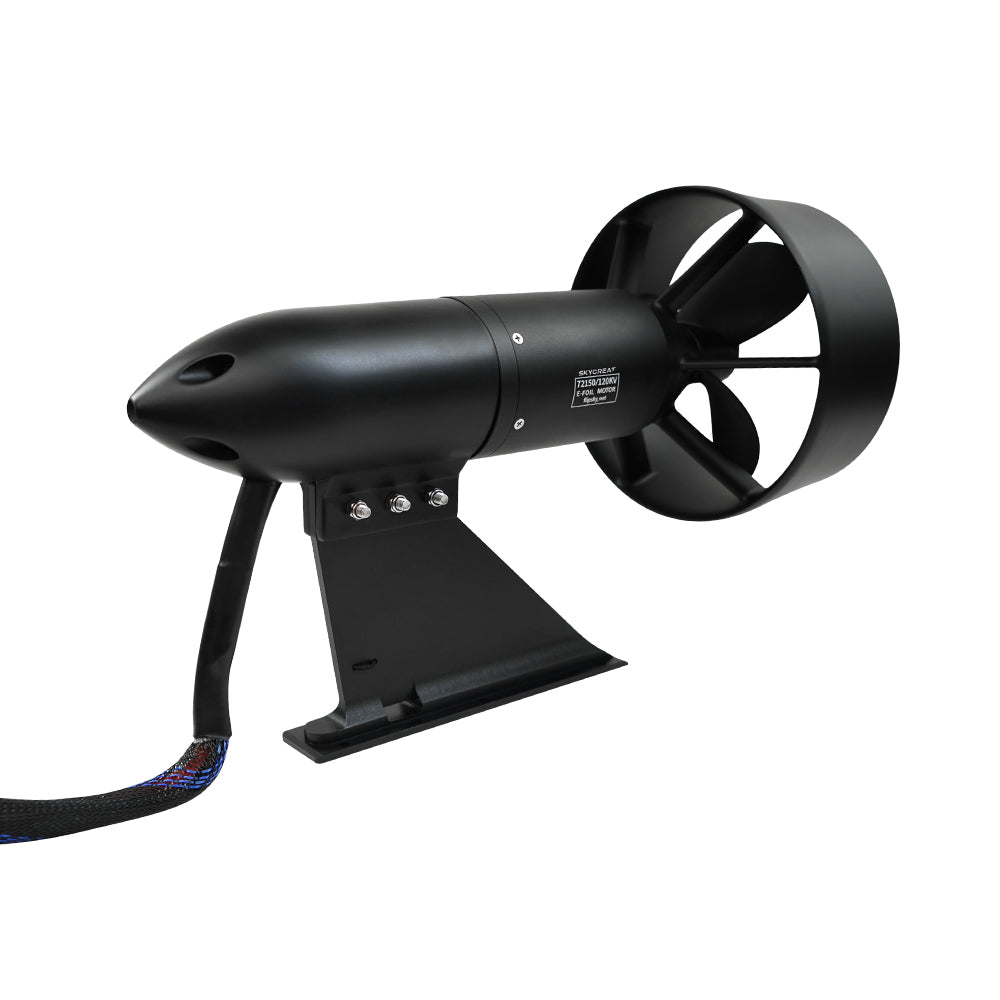

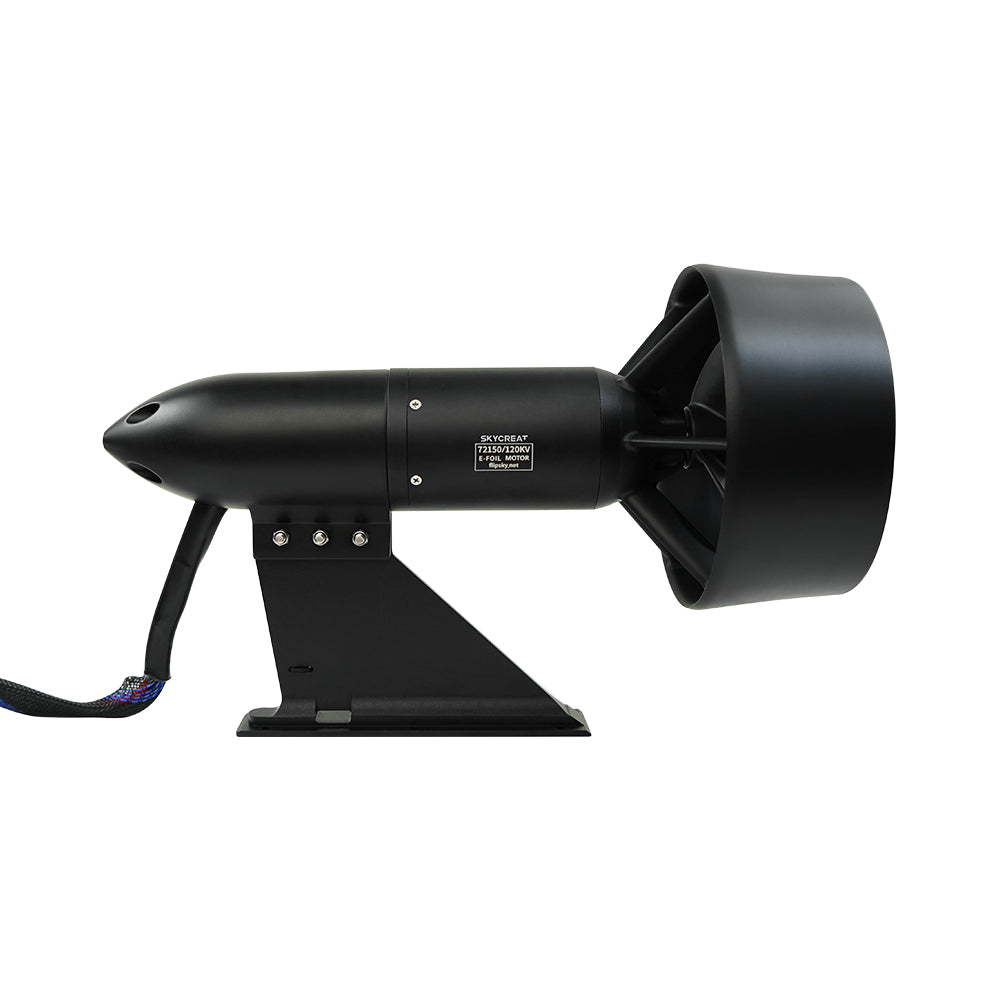

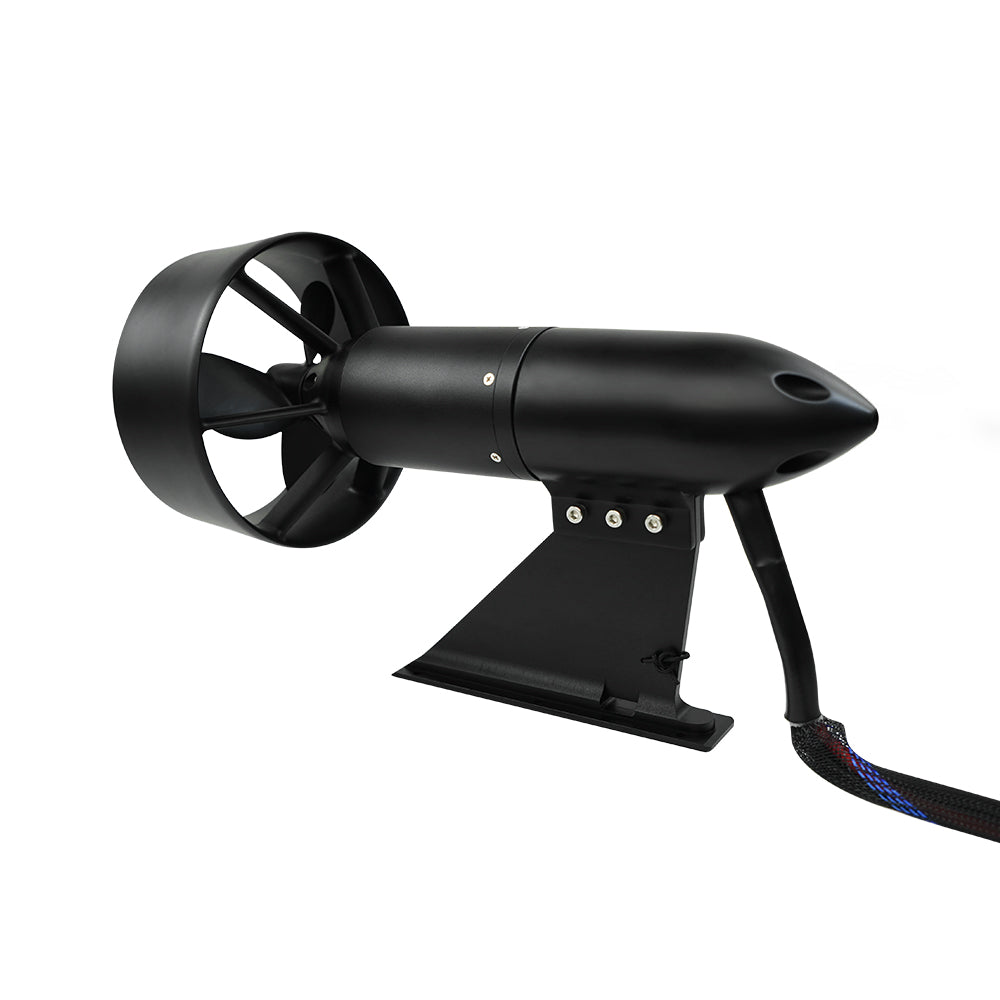

| Motor Model | 72150 Built-in Drive Waterproof Motor (Threaded Shaft) |
| Waterproof Rating | IP68 |
| Motor Mount Material | ABS |
| Propeller Guard Material | ABS |

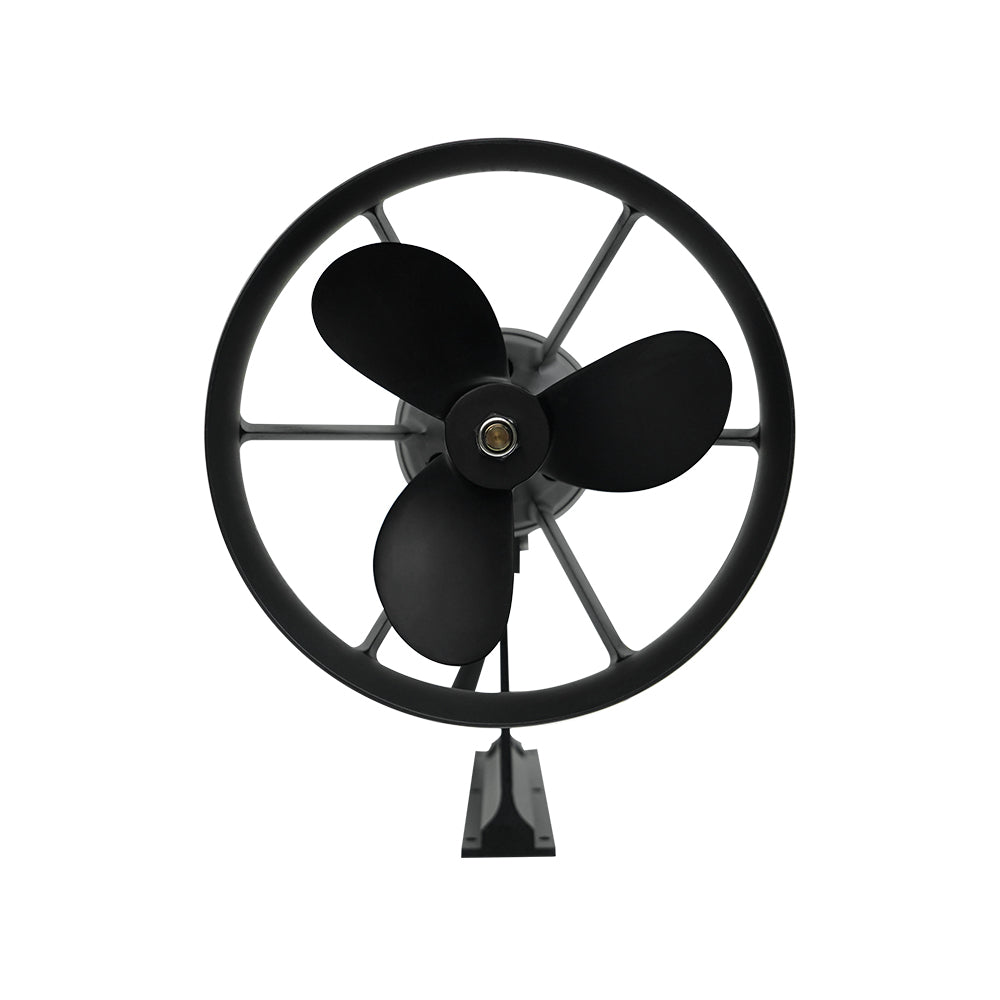

| Propeller | 72 Motor 3-Blade (140mm) |
| Voltage Range | 6–12S (25.2V–50.4V) |
| Rated Power | 2100W |
| Max Power | 3000W |
| Rated Current | 70A |
| Max Current | 100A |
| ESC Drive Mode | UART |
| Power (W) | Static Thrust (kg) |
| 300W | 8 kg |
| 500W | 12 kg |
| 800W | 16 kg |
| 1000W | 19 kg |
| 1200W | 21 kg |
| 1500W | 24 kg |
| 1800W | 27 kg |
| 2000W | 29 kg |
|
2100W |
30 kg |
| SPEED | Actual speed depends on the boat type andoperating environment. Tested on a 350X81X15 cmpaddleboard in calm water: 19 km/h. |
|
Battery Box |
|
| Dimensions | 371×269×186mm |
| Waterproof Rating | IP67 |
| Voltage | 50.4V |
| Cell Spec | Molicel P42A 21700 |
| Capacity | 12S 4P — 16.8Ah / 846.72Wh / 16800mAh |
| Charger | 50.4V 6A |
| Charge Time | ~2.6 hours |
| Runtime | 90–120 min (recommended cruise power: 500W) |
| Remote Controller | |
| Model | VX3 |
| Control Mode | UART |
| Range | 25m (interference-free, line of sight) |
| Waterproof Rating | IP68 |
| Speed Modes | 3 modes: Low / Medium / High |
| Features | Cruise control, GPS, speed display, battery level display |
| Packaging | |
| Box Dimensions | 46cm × 33cm × 49cm |
| Gross Weight | 12 kg |
